The Network Isn't Broken Everywhere, Just Here: Diagnosing One Connection at a Time
Over mobile data, Telegram won’t bring up a connection: the client sits on “Connecting…”. Over Wi-Fi, the same client connects instantly. Between the two attempts only the network changes: the point of attachment and the carrier. That is enough for traffic to the same server to go through on one network and die on the handshake on the other.
The network itself is nominally fine: DNS resolves, other sites load, a ping to 8.8.8.8 comes back clean. What drops is specific connections, and always the same ones. This is the signature of DPI: a box on the carrier side inspects the traffic and drops the connections that match a signature. The rest goes through untouched.
For a busy network this asymmetry has long been the norm. A mobile carrier doesn’t stop at routing: it fingerprints TLS and QUIC handshakes, throttles per connection, clamps the MTU, and strips ECN; an in-path box kills a connection that a home router would pass without a second look. The outcome is predictable: one destination is dead, the next one is fine, and any global “turn it on everywhere” switch is guaranteed wrong for at least one of them.
Most tools in this space start from a guess. They run one packet-level trick against a list of hosts and hope it lands. Route-everything tunnels go to the opposite extreme: they funnel all traffic through a remote node and pay for it in latency even where nothing was broken. Both prescribe the treatment without making a diagnosis.
RIPDPI runs the diagnosis first.
The diagnosis
Diagnosis runs as a chain of four Rust crates: ripdpi-diagnostics-candidates builds the probe inputs, ripdpi-diagnostics-probes defines the Probe trait every check implements, ripdpi-diagnostics-classification turns raw observations into a verdict, and ripdpi-diagnostics-runner drives the whole battery. More than a dozen probe stages: DNS integrity and tampering, domain and QUIC reachability, an ECH handshake check, MTProto reachability for Telegram, throughput, a DoH-JSON resolver survey. Not one talks to a hard-coded server: the target arrives at runtime through a ProbeContext, and the probe hits exactly the address that was actually being opened.

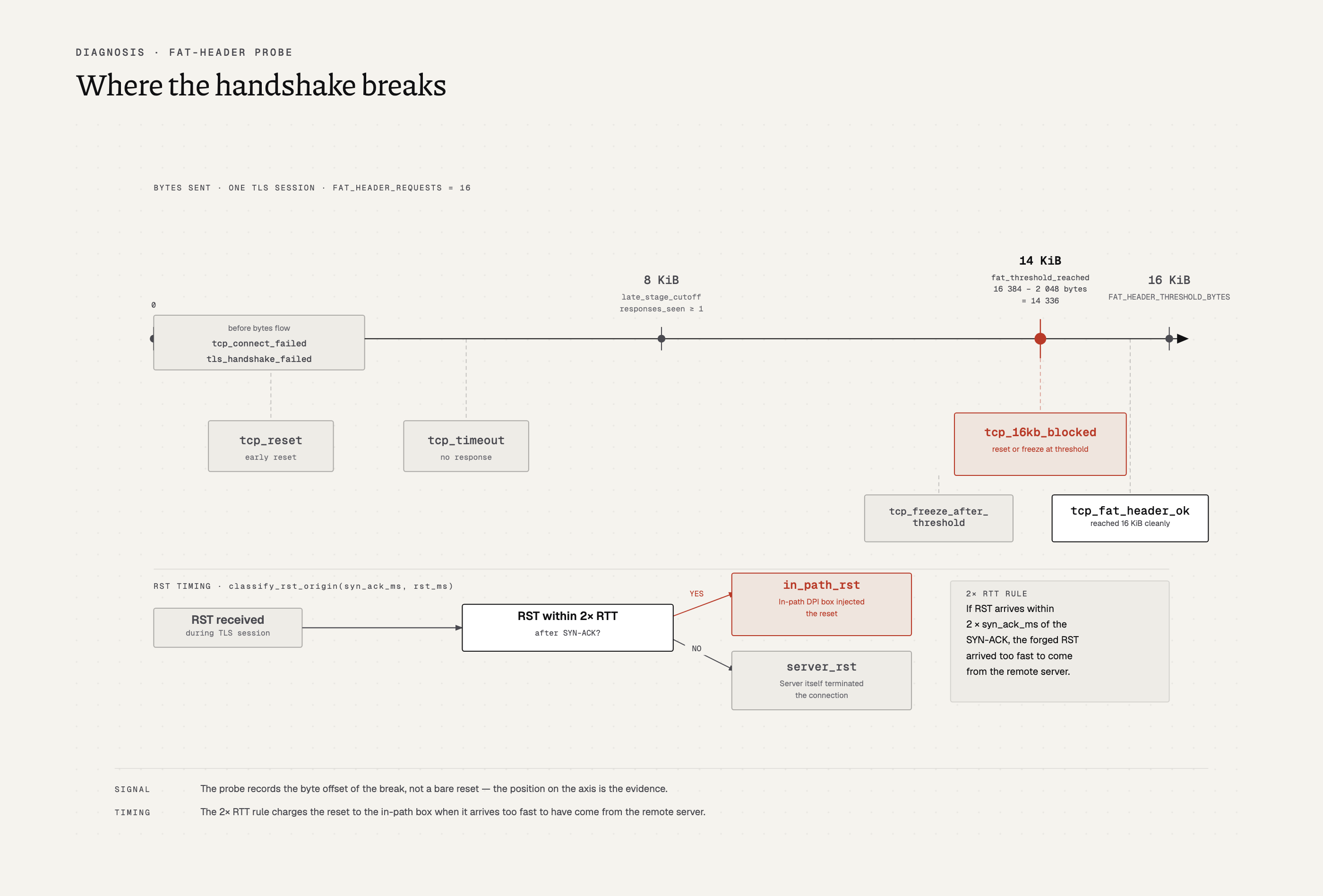

TcpRunner opens one TLS session and sends up to 16 padded HTTP HEAD requests, each larger than the last, tracking the cumulative bytes against a 16 KiB threshold (FAT_HEADER_THRESHOLD_BYTES = 16 * 1024). Many boxes hold connection state only within an internal buffer; let that request stream outgrow the buffer mid-flight and the box tears the connection down. The probe clocks the exact byte where it breaks. A reset or timeout after roughly 14 KiB has been sent, or after a response once at least 8 KiB has gone through, is logged as tcp_16kb_blocked rather than a plain reset: the byte of the break is the signal. It splits resets by timing too: a RST within twice the SYN-ACK round-trip is charged to the in-path node, not the server; one that arrives later is taken as the server itself hanging up, and that gets treated differently.
The probe maps each run to one outcome tag:
tcp_fat_header_ok request stream reached 16 KiB cleanly
tcp_16kb_blocked cut off at the ~14 KiB threshold
tcp_freeze_after_threshold stalled past the threshold
tcp_reset reset before the threshold
tcp_timeout no response
tcp_connect_failed never connected
tls_handshake_failed TLS setup failed
The figure is the decision logic; here is the probe actually running it, three times against the repo’s local-network-fixture, which stands in for the middlebox on loopback:
outcome bytesSent rstTimingMs rstOrigin confidence
tcp_fat_header_ok 147664 - - none
tcp_reset 8273 12 server_rst medium
tcp_16kb_blocked 16680 3 server_rst high
These are real probe results, not mock-ups. Three numbers cluster near the threshold and are easy to conflate: 16384 is the 16 KiB cumulative threshold (FAT_HEADER_THRESHOLD_BYTES); ~14 KiB is that minus a 2 KiB margin, the point from which the probe reads a teardown as the fat-header signal rather than a plain reset; and 16680 is simply the bytes already sent when this teardown landed, just past the threshold, so window_cap fires and it lands as tcp_16kb_blocked. One honest limit of a loopback rig: the SYN-ACK RTT is ~0, so the RST falls to server_rst either way; only a non-loopback path, with a measurable round-trip, lets the 2×RTT rule separate in_path_rst from server_rst.

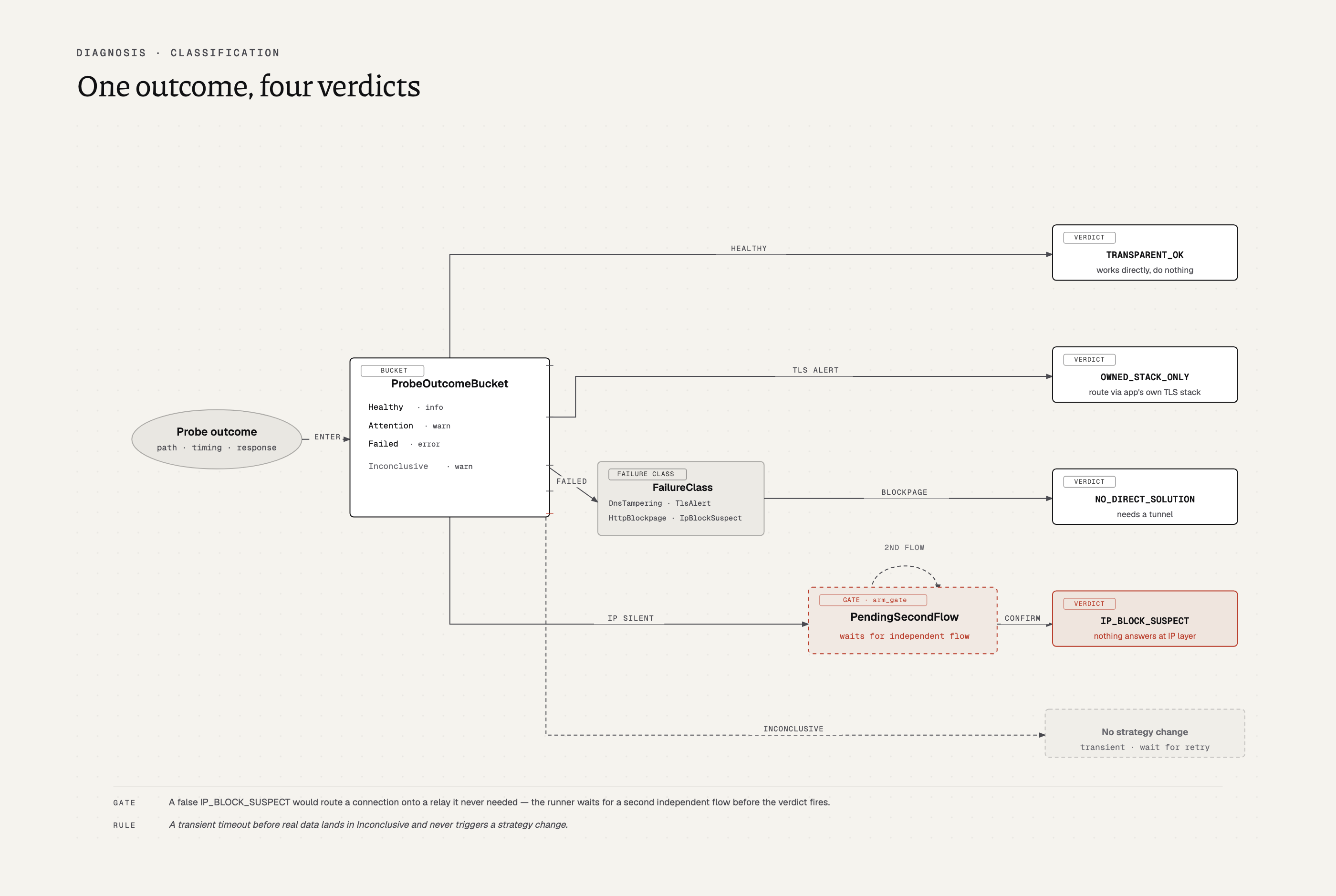

Each probe outcome lands in one of four ProbeOutcomeBucket values: Healthy, Attention, Failed, Inconclusive. Each carries an event level: info, warn, or error. When the path actively rejected the connection, the failure also carries a FailureClass, one of sixteen variants (DnsTampering, TlsAlert, HttpBlockpage, IpBlockSuspect, and the rest). Inconclusive is the careful bucket. A transient timeout that fired before any real signal arrived goes there and never triggers an automatic strategy change. Guessing on noise is how you train the wrong fix.
The classification layer collapses all of it into four verdicts, and those decide what happens to the traffic. TRANSPARENT_OK: everything works directly, nothing to touch. OWNED_STACK_ONLY: the site loads only through the app’s own TLS stack, so that’s where the connection goes. NO_DIRECT_SOLUTION: no on-device packet surgery recovers this one, it needs a tunnel. IP_BLOCK_SUSPECT: nothing answers at the IP layer at all.
IP_BLOCK_SUSPECT is deliberately hard to reach. It needs every DoH-supplied IPv4 address to fail at the SYN, every alternate IPv6 to fail too, and a second independent flow to confirm. Until that confirmation lands, the runner sits in PendingSecondFlow and withholds the verdict. A false positive here would shove a connection onto a relay it never needed, so the runner waits for proof. When the verdict does fire, it sets arm_gate = OwnedStackOnly and doesn’t even try a TLS-family repair: rewriting packets is pointless if nothing is home at the address.
The lightest fix
When a verdict calls for packet surgery, a second system takes over. Every fix implements the DesyncStrategy trait from ripdpi-strategy-trait: plan assembles the steps, the other three methods are bookkeeping. The steps are variants of a DesyncAction enum, and they share one idea: show the in-path box something other than what the server will see. Split { offset, disorder } fragments a TCP segment. WriteFake { ttl, sni_mode, payload_file } injects a decoy at a low TTL so it dies in transit before it reaches the server. From there it climbs in weight, from games with the TCP window and TTL up to IP fragmentation and data overlaid on sequence numbers. By default it runs on ordinary unprivileged sockets; the steps that need raw ones live in an optional root helper (ripdpi-root-helper) and are skipped quietly when there’s no root.
A “lightest fix” is concrete. It’s a short ordered list of those actions, the output of one strategy’s plan, applied to a single connection and nothing else.
Ten strategies ship built in, registered through linkme distributed slices, so adding one means a single entry and no central match statement. The names are utilitarian: split fragments a segment, seq_overlap lays data over sequence numbers; the rest are in the same vein. Two more, synack and synack_split, sit as Unimplemented placeholders; SYN-ACK injection runs on a separate path, through the TUN ingress interceptor. The registry tries strategies in registration order and takes the first whose plan builds. If applying it fails, an OnFail policy decides: roll back to the next one, fall back to plain traffic, or drop the connection. Plain is the floor if nothing works.
There’s a scripted escape hatch too: a feature-gated Lua strategy runs custom logic in a locked-down sandbox (the dangerous stdlib stripped, compiled bytecode refused, a 16 MiB memory ceiling, an instruction-counting watchdog for busy loops, and no escape from its configured directory).
Where the action lands inside the flow is not fixed either. A per-flow tuner, AdaptivePlannerResolver in ripdpi-runtime-adaptive, keeps state per (network, group, flow kind, target) tuple and walks five tuning dimensions one at a time when a fix fails (split offset, TLS record offset, and three protocol-specific profiles). The walk order is shuffled per flow from a seed derived from its key, so two flows take different routes instead of stampeding the same path. A win pins the current candidate. A loss benches it for fifteen seconds before it’s allowed back in.
A layer up, StrategyEvolver runs a UCB1 bandit: explore versus exploit. It weights the option that has worked against the one it has sampled least. It scores each strategy combination on success rate, latency, and stability, with a penalty drawn from the failure classes that mean the path actively rejected the connection (TlsAlert, HttpBlockpage, Redirect, ConnectionFreeze). Wins decay on a two-hour half-life and losses on a one-hour half-life, so a strategy that worked holds its edge about twice as long as one that failed. A Thompson-sampling alternative sits in the same crate, marked dead code; UCB1 is the default, and the comment says so out loud.
Packet surgery is one of two ways out of a bad verdict. The other is OWNED_STACK_ONLY: route the connection through the app’s own TLS client instead of the system’s. That client (OwnedTlsClientFactory over the Rust ripdpi-tls-profiles crate) keeps verified ClientHello templates for Chrome, Firefox, Safari, and Edge, down to cipher-suite order and session-ticket behavior. It picks one per connection by hashing SHA-256(authority | session seed | profile set), so the choice is stable per host but varies across hosts. It speaks ECH where the target offers it and negotiates the post-quantum hybrid X25519MLKEM768 group when both ends support it. A checked-in fingerprint snapshot (owned_stack_tls_fingerprint_snapshot.json) fails CI if the handshake drifts.
What the phone remembers
The learning is stored per network, not per destination alone. The RememberedNetworkPolicyStore, Kotlin over a Room database, stamps every entry with a SHA-256 hash of the network’s scope. The hash folds in transport type, DNS-validation state, captive-portal status, private-DNS mode, the sorted list of DNS servers, and an identity tuple that differs by transport: SSID, BSSID, and gateway for Wi-Fi; operator and SIM codes, carrier ID, and roaming state for cellular. Everything is lowercased and trimmed before it’s hashed, and the raw values barely outlive the hash: CapturedWifiIdentity.toString() prints redacted, the coarse NetworkSnapshot used for classification carries no SSID or IP at all, and a repo rule keeps raw SSID and BSSID out of logs and crash reports. The raw SSID never leaves the phone.

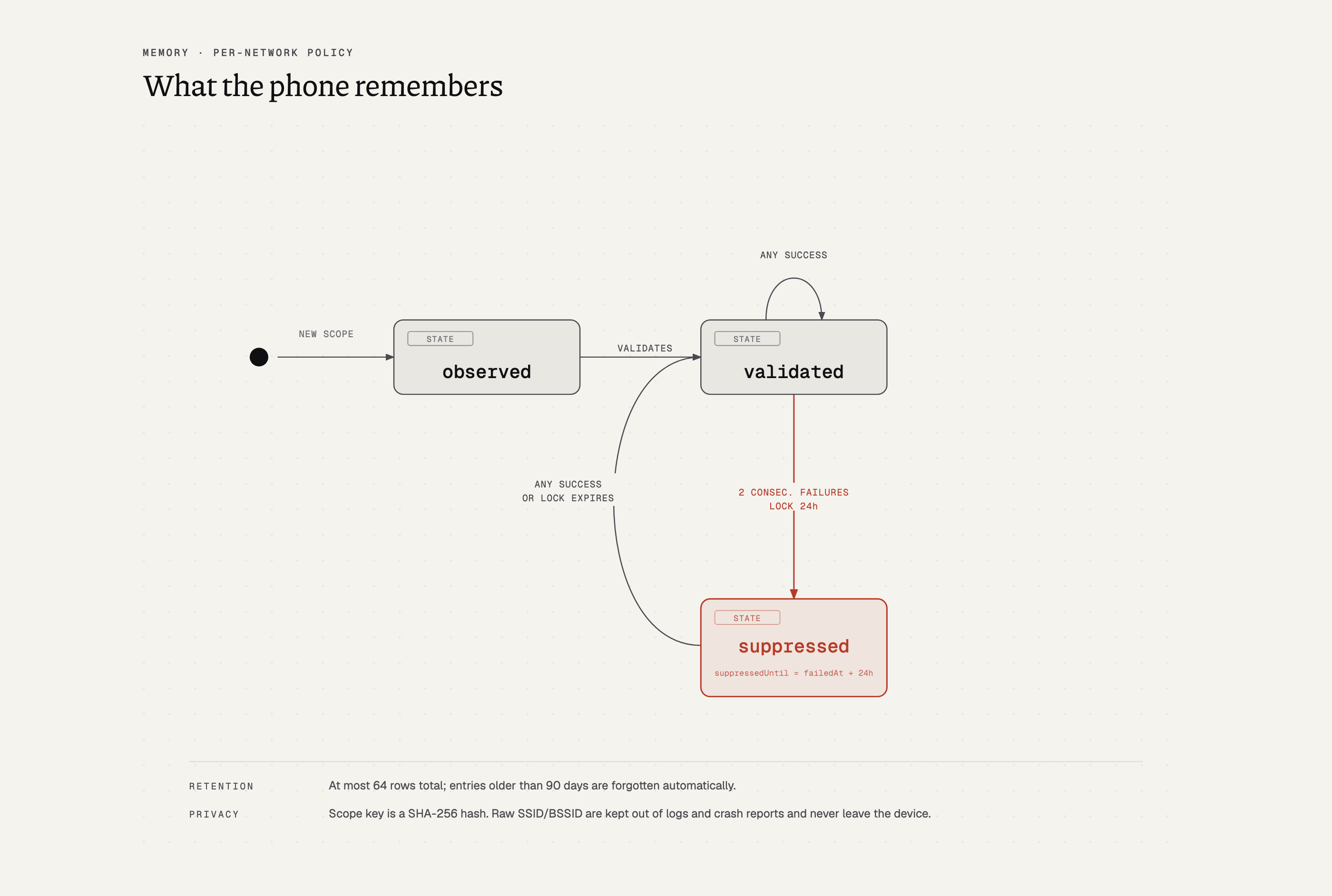

A remembered policy moves through three states: observed, validated, suppressed. Two consecutive failures of a validated policy flip it to suppressed and lock it out for 24 hours; any success resets the failure count and clears the lock. The table keeps at most 64 rows total and forgets anything older than 90 days. On rejoining a known network, the store replays the validated policy at once, then re-checks quietly in the background. Every handoff between Wi-Fi and cellular recomputes the fingerprint and queries the store. Over weeks the phone ends up holding a private map of which networks break which connections, and how.
Two ways it runs
The lighter of the two is proxy mode. RipDpiProxyService opens a SOCKS5 proxy on a localhost port; apps that speak SOCKS5 or HTTP CONNECT point at it explicitly, and nothing else on the device is redirected. The other mode runs that same proxy on an ephemeral port, then layers a TUN device on top through Android’s VpnService. The tunnel reads IP packets off the TUN device (10.10.10.10/32, MTU 1500) and opens authenticated SOCKS5 sessions back into the proxy.
With no relay configured, the tunnel doesn’t change the exit IP: traffic still leaves the device directly. On the way out the packets are only rewritten, so the destination sees the real address and a slightly stranger-looking handshake. The route doesn’t change; only the packets do.
When encrypted DNS is on in tunnel mode, an internal FakeIP layer called MapDNS answers queries from the 198.18.0.0/15 range, resolves the real name over the encrypted resolver, and hands the app a synthetic address it pins for the life of the connection. It’s never a user-facing toggle: its IPv6 interactions and fail-closed drops make it a poor thing to put behind a switch.
That encrypted resolver is its own piece. ripdpi-dns-resolver speaks DoH, Oblivious DoH (RFC 9230), and DNSCrypt, so the tool doesn’t have to fall back to the system resolver and let whatever the network’s DNS answers pollute a measurement. Oblivious DoH splits the knowledge in two: the query goes through a relay that sees the address but not the name, while the target resolver sees the name but not the address, so no single hop sees both. Answers land in a route-aware cache keyed by (domain, qtype, route decision), which forces a fresh lookup when the route changes rather than serving a result resolved for a different path.
Routing through your own server is optional, and it comes with caveats. The native core in libripdpi-relay.so carries a dozen-odd transports, from Shadowsocks and Trojan up to VLESS Reality and multi-hop chains; WARP and AmneziaWG sit apart, tunnels rather than relays. The list matters less than the line under it in the status doc: every protocol is tested on loopback only, and not one has live remote-endpoint coverage. Mieru shows the gap plainly. It has a native crate and a loopback test, but no activator arm is wired into the profile switch, so a saved profile can’t turn it on at this revision.
When the path does run through your own server, the handoff is a contract, not a copy-paste. The server-side deploy tooling (emit-bundle.sh) emits a standard sing-box JSON config with one extra top-level ripdpi object: a schema_version plus the fields sing-box has no slot for: an array of AmneziaWG profiles and Hysteria2 obfuscation extras. The app’s SingBoxSubscriptionParser reads the standard outbounds, then the ripdpi block; it rejects a schema_version it doesn’t know, and a plain sing-box client never notices the key. A contract test on each side holds the shape, SingBoxRipdpiExtensionParserTest on the client and the secrets validator on the server, so the format can’t drift apart in silence. One credential deliberately never travels this path: a WireGuard private key stays a placeholder (private_key_placeholder: true) and is delivered out of band.
Why the line is drawn where it is

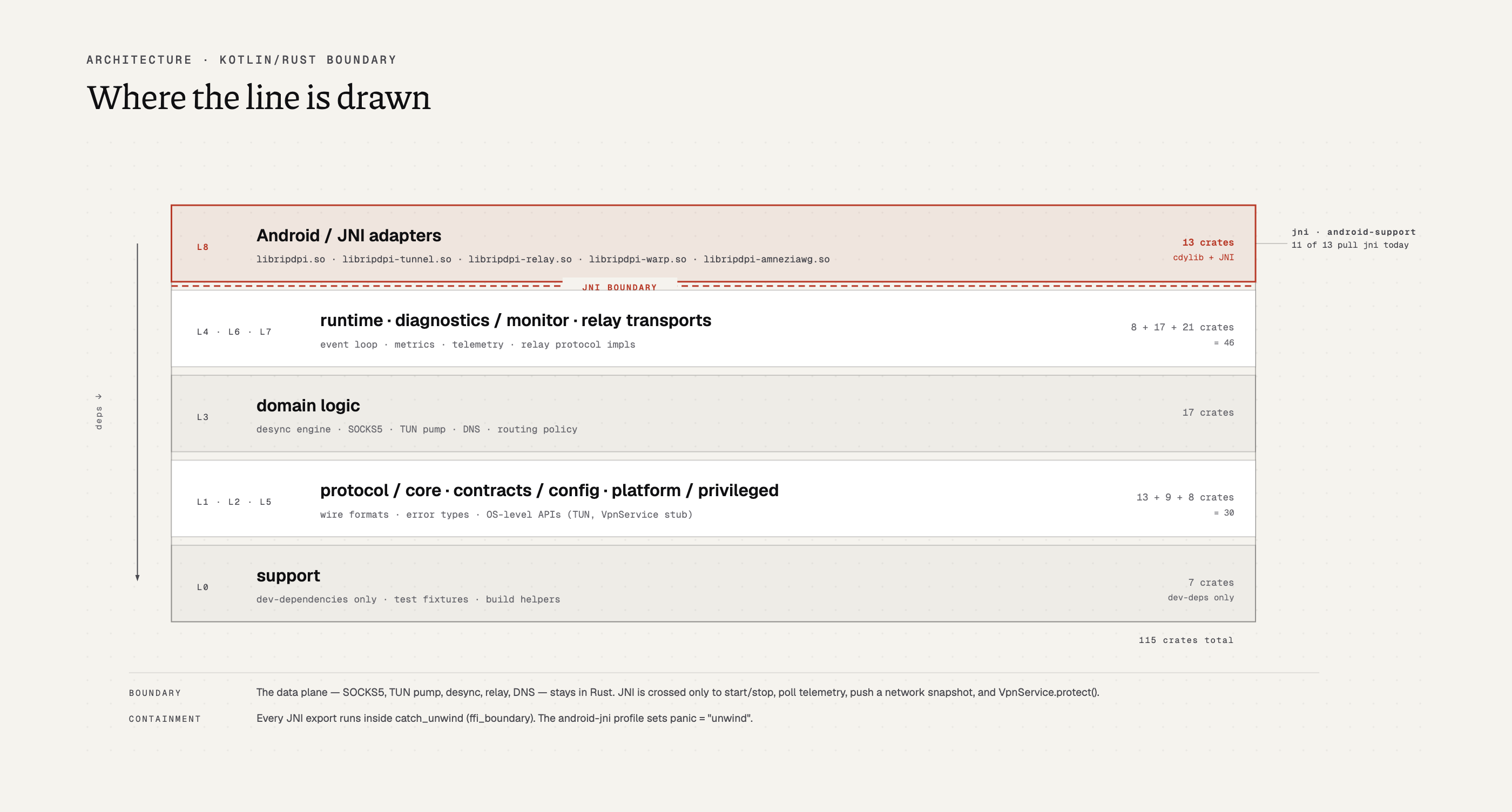

The Kotlin/Rust boundary is narrow on purpose. The workspace is 115 crates (the architecture docs still say 114) arranged in nine layers, L0 to L8, and the layering is machine-enforced: a CI script lets only the thirteen top-layer crates touch the jni crate or the android-support shim. Nothing below them can. Five of those top crates compile to the shared libraries Android loads: libripdpi.so, libripdpi-tunnel.so, libripdpi-relay.so, libripdpi-warp.so, libripdpi-amneziawg.so.
Nothing in the data plane crosses into Java. SOCKS5 sessions, the TUN packet pump, the desync mutations, relay transport, DNS forwarding: all of it stays in Rust. JNI is crossed only to start and stop a session, poll telemetry about once a second, push a network snapshot, and call VpnService.protect() on a socket. Every one of those crossings is wrapped. The android-support crate’s ffi_boundary runs each export inside catch_unwind, so a Rust panic comes back as a sentinel value instead of unwinding across the extern "system" edge into undefined behavior. The JNI build profile even sets panic = "unwind" deliberately, because the project’s release profile is set to abort, and inheriting that would take down the whole process instead of letting the boundary catch it.
Why Rust, specifically, for code that parses untrusted bytes straight off the wire is the subject of the next piece.
The same box is still on the path, behaving exactly as before: it buffers the traffic and tears the connection down past the threshold, regardless of which app opened the connection. What changes is the phone. It no longer treats every failure as the same failure: it files a verdict, then tries the smallest intervention that clears the stall and remembers whether it held. The next time that connection hangs on that network, the store already holds the fix that cleared it.
